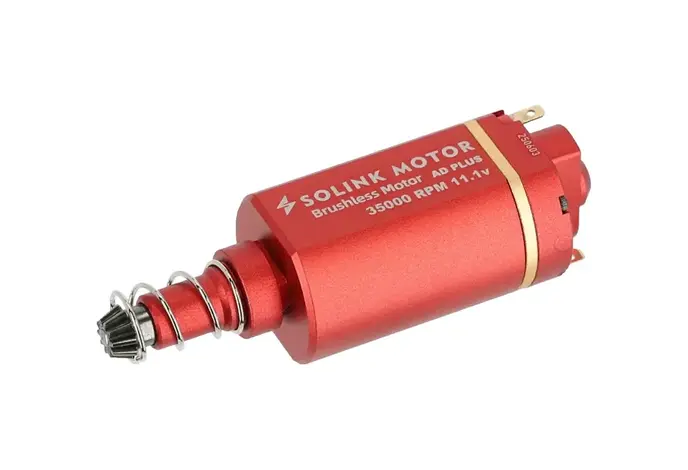

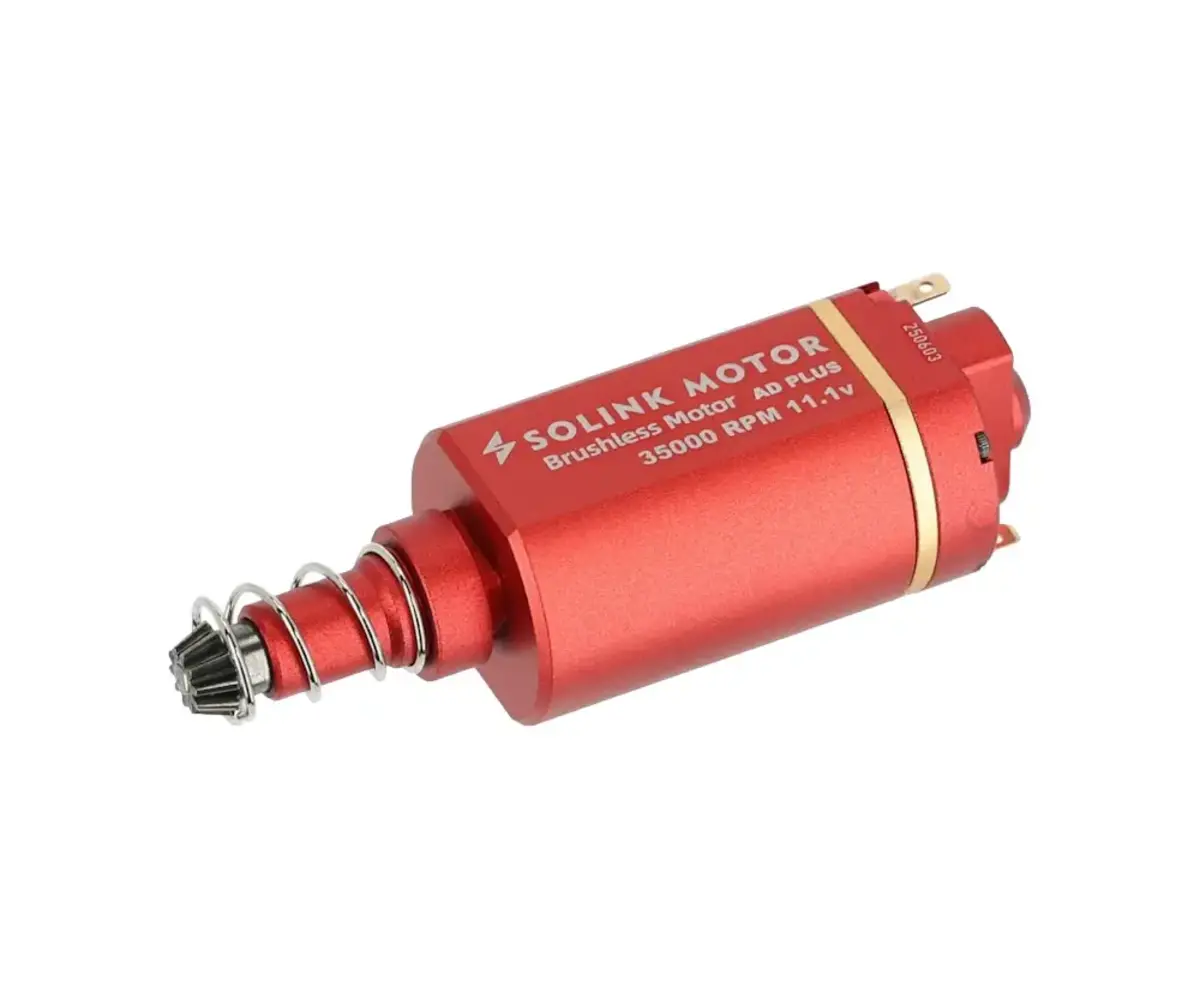

Solink Advanced Plus Brushless Motor for AEGs

The Solink Advanced Plus Brushless Motor is the evolution of Solink’s Advanced series, engineered to deliver higher torque, faster response, and quieter operation. Built with a unidirectional bearing system and extended stator/rotor design, the Advanced Plus outperforms its predecessor by providing up to 20% better performance while maintaining efficiency and durability. Available in 31K and 35K RPM long-shaft variants, this motor is ideal for players who want a balance of power, responsiveness, and longevity in their upgraded AEG builds.

Key Features or Characteristics

Brushless Upgrade: By eliminating brushes and using a stationary coil design, the Advanced Plus motor runs cooler, more efficiently, and with less wear than conventional brushed motors, resulting in extended playtime and longer lifespan.

Versatile RPM Modes: Equipped with a high/low RPM selector, users can instantly reduce RPM by approximately 20% for fine-tuning rate of fire and trigger response, adapting performance to different playstyles and builds.

Unidirectional Bearing System: This innovative design prevents reverse rotation, eliminating the need for an anti-reversal latch. The result is smoother cycling, reduced gearbox noise, and a simpler internal setup.

Reinforced Construction: Featuring a CNC-machined aluminum housing, triangular shaft sleeve for rigidity, and a redesigned end bell for better compatibility, the Advanced Plus is built to withstand heavy use. Its extended stator and rotor improve torque output without compromising speed.

Protection & Compatibility: The motor integrates overheat protection, emergency stop, and ETU active braking support, making it a safe and reliable choice for advanced AEG builds. Compatible with most standard AEG gearboxes that accept long-type motors.

Why Choose This AEG Part?

• Improved torque and response
• Selectable 31K or 35K RPM variants (long shaft)
• High/low RPM mode switch (20% reduction option)
• Brushless system for cooler, more efficient operation
• Unidirectional bearing design eliminates anti-reversal latch
• CNC aluminum housing with reinforced shaft sleeve
• Extended stator & rotor for stronger torque output
• Supports up to M160 springs
• ETU active braking compatible with built-in safety features
• Individually boxed for protection and storage

Specifications

Motor Type: Brushless AEG motor (Advanced Plus series)
Available Speeds: 31K RPM / 35K RPM (11.1V no-load)
Shaft Type: Long Type
Material: CNC aluminum housing
Gear: D-type pinion
Voltage Range: 7.4V – 16.8V
Torque Capacity: Supports up to M160 spring builds
Compatibility: Most standard AEG gearboxes (long shaft motor slot)

Installation Notes

This motor is designed for advanced AEG upgrades and should only be installed in compatible builds. Professional installation is strongly recommended. Airsoft Extreme is not responsible for damage caused by improper use or installation.
