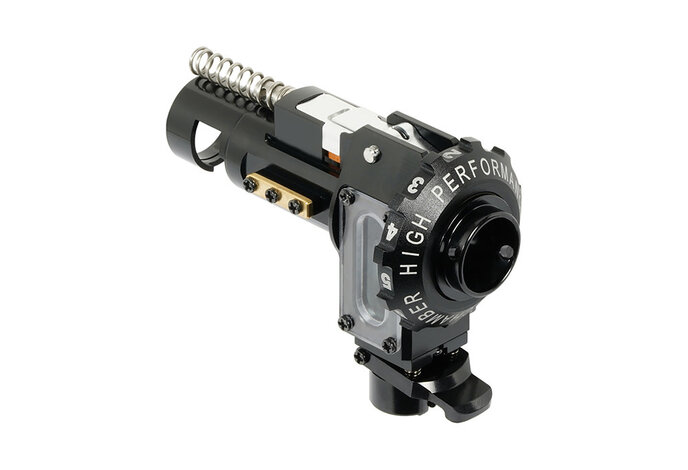

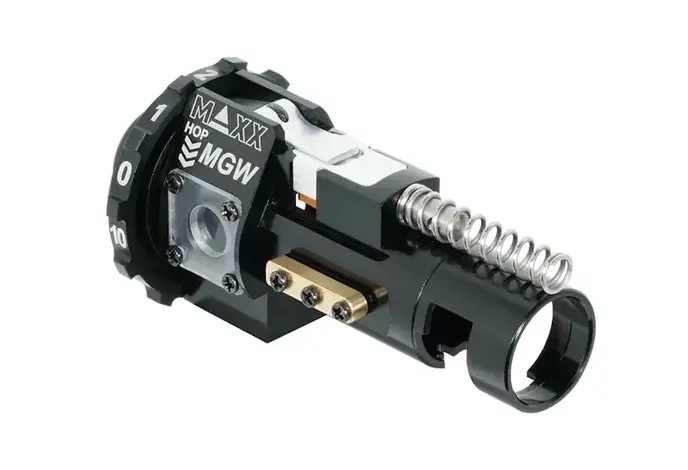

Maxx Model CNC Aluminum GBB Bucking Hop-Up Chamber for AEG / HPA Platforms
$79.99
Maxx Model CNC Aluminum GBB Bucking Hop-Up Chamber for M4 / M16 Series Airsoft AEG Rifles

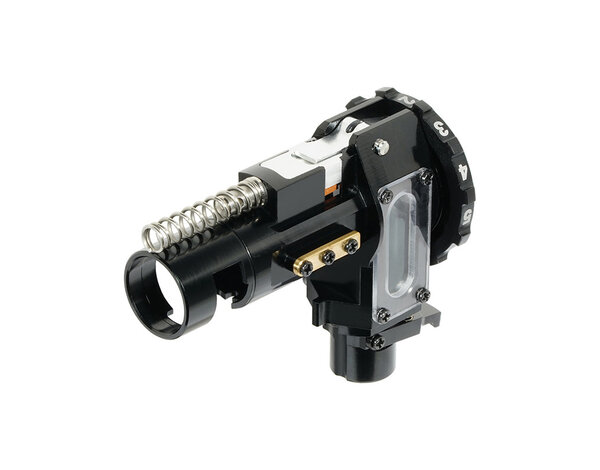

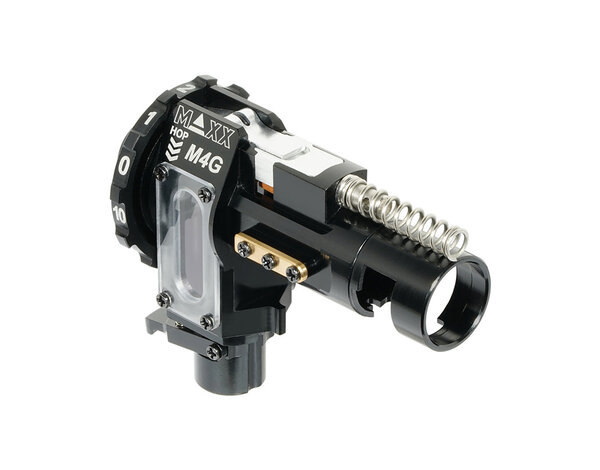

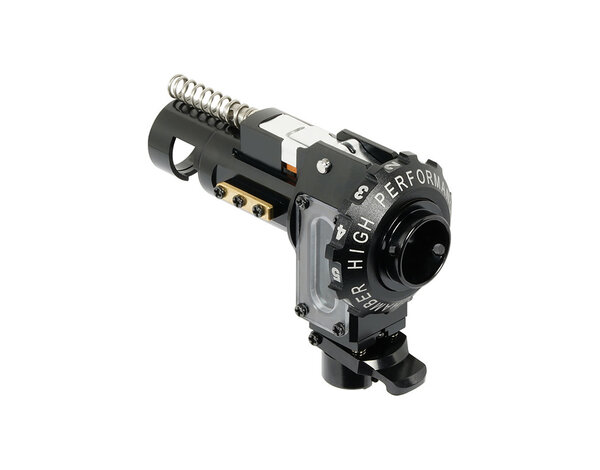

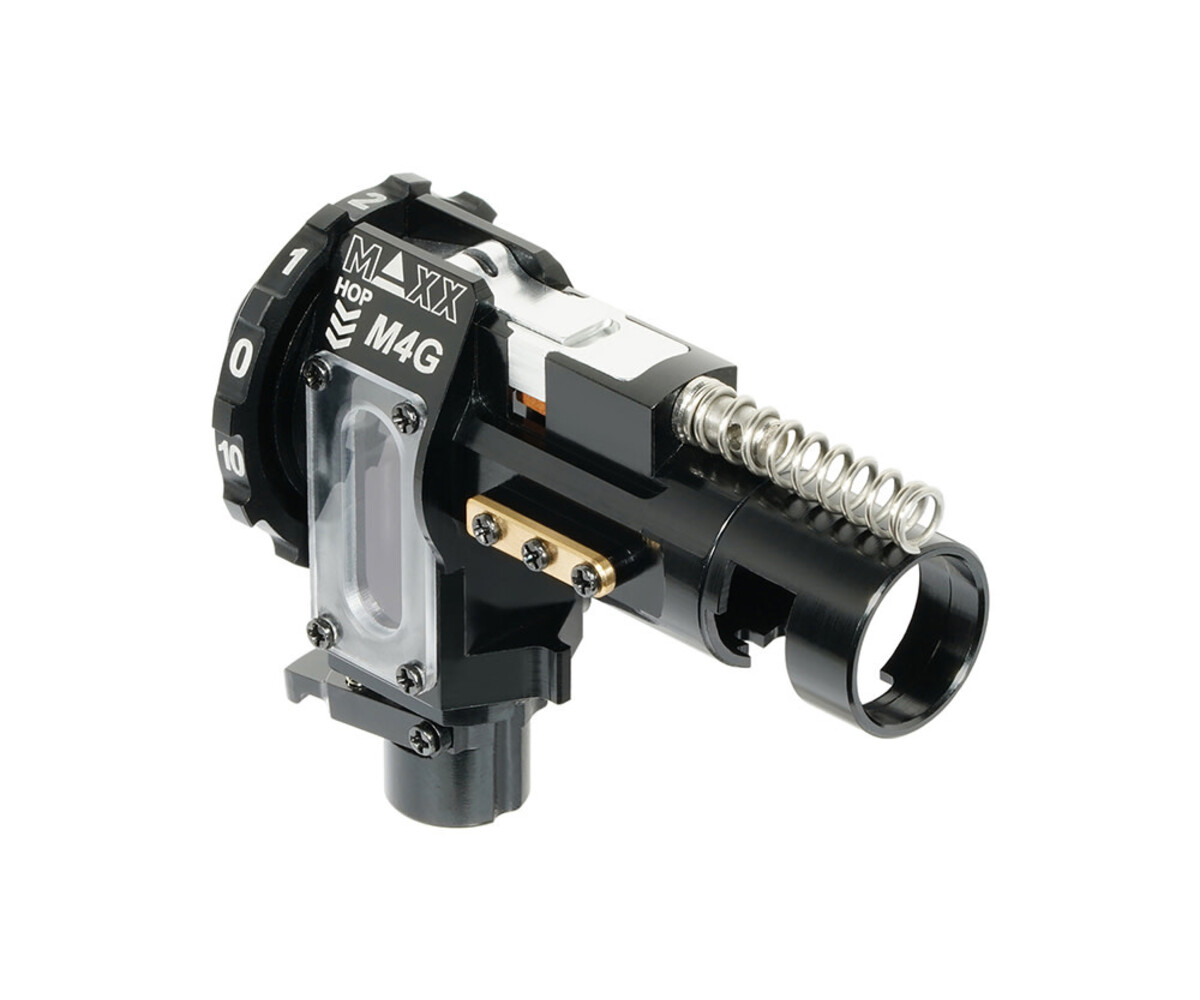

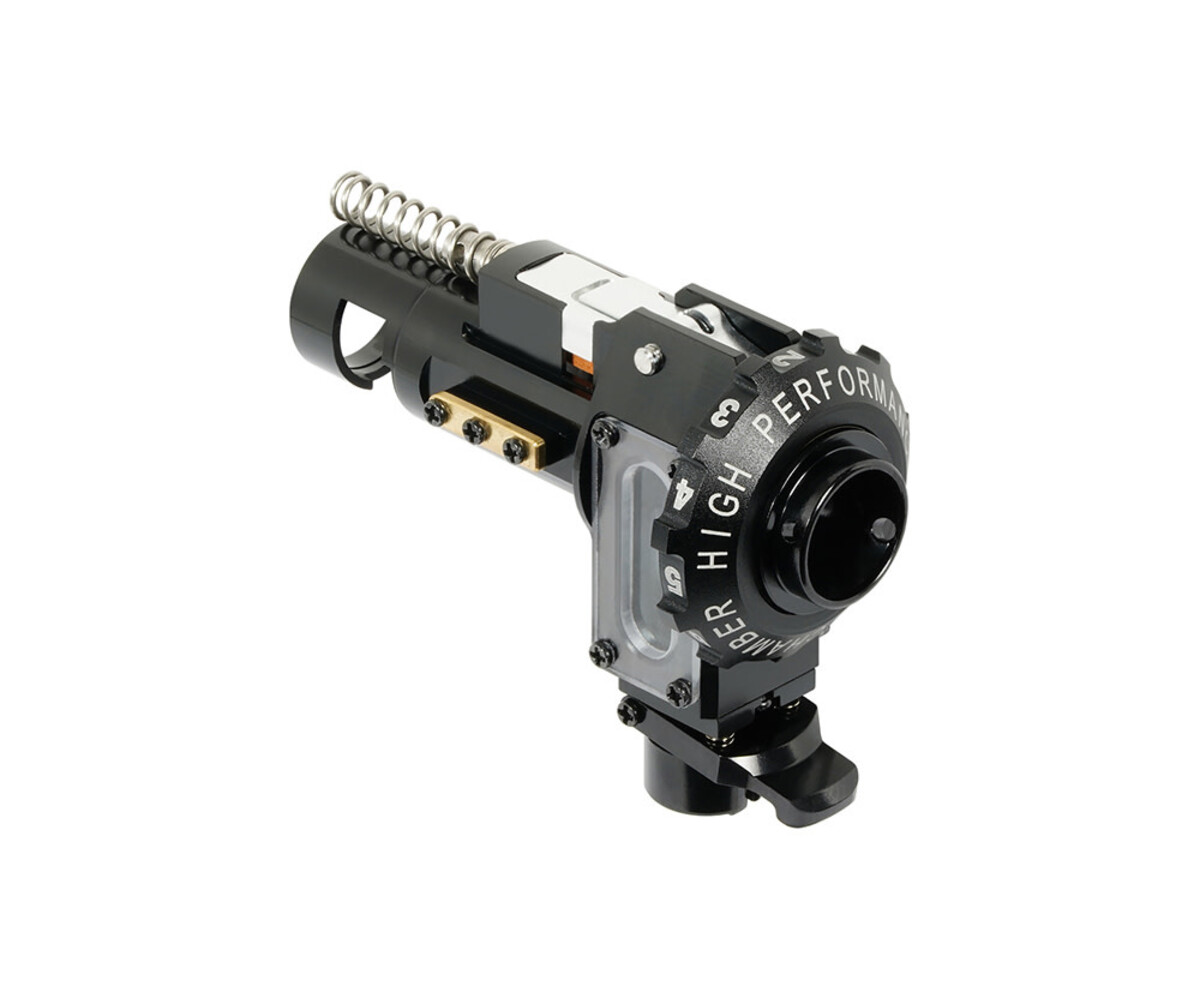

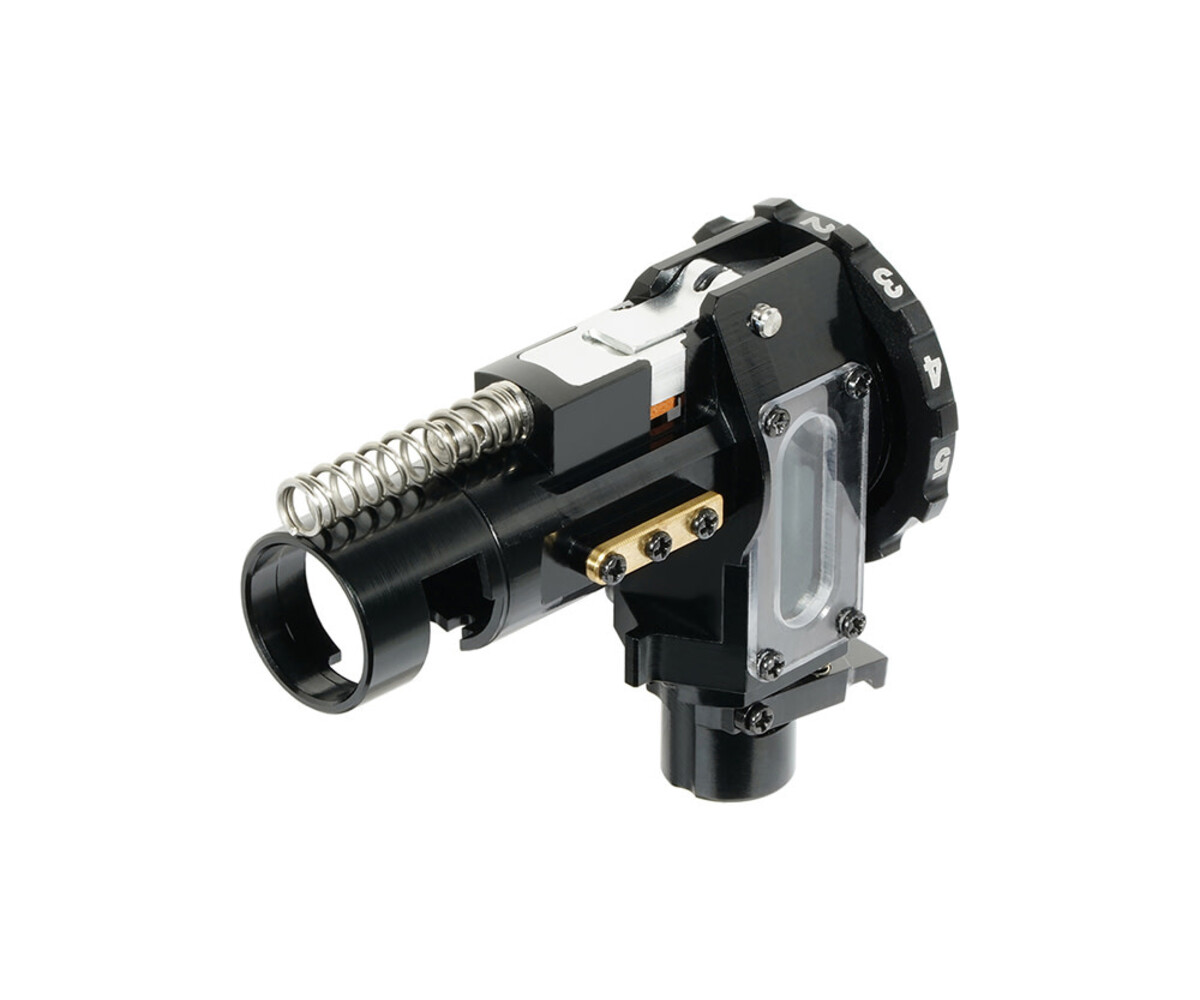

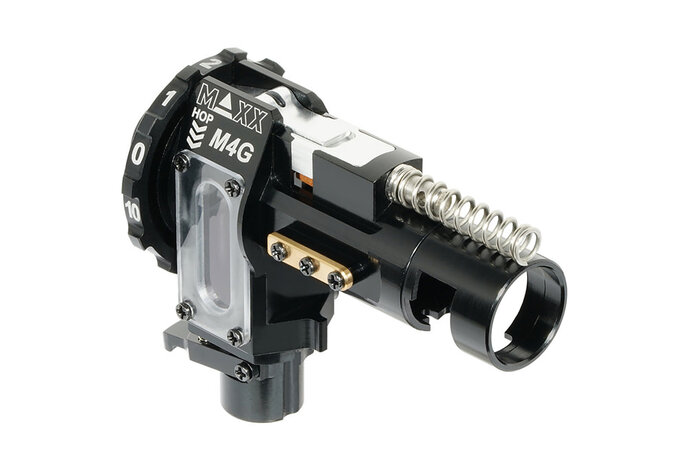

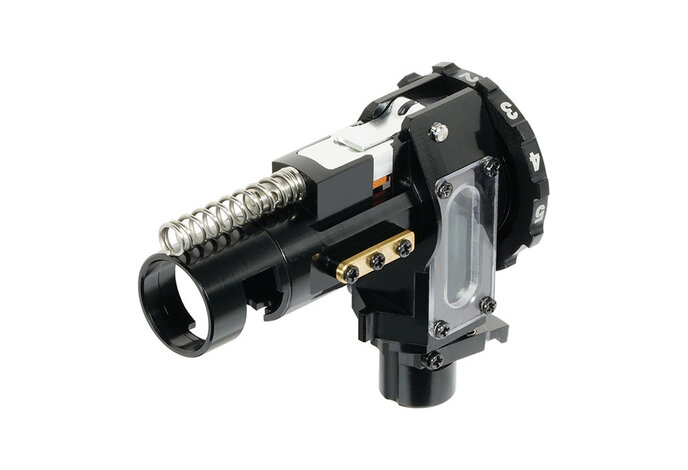

The Maxx Model CNC Aluminum GBB Bucking Hop-Up Chamber (M4G model) is a groundbreaking upgrade for advanced airsoft players, designed specifically to convert AEG/HPA platforms for use with GBB (Gas Blowback) barrels and buckings. This innovative hop-up chamber enables the larger contact surface of a GBB bucking, providing improved accuracy and consistency for every shot.
This M4G Hop-Up Chamber is finely crafted with a rotary dial knob for precise hop-up adjustments, a precision hop-up lever, and multiple bucking nubs that support a wide variety of hop configurations. It is compatible with Tokyo Marui and VFC-based M4/M16 AEG rifles, offering a stable, consistent shooting experience.
- This unit is compatible with GBB buckings that do not have a centering notch. GBB buckings with a notch, such as those for Maple Leaf Wonder and Super GBB, may require trimming for compatibility
- GBB barrels used with this unit must be compatible with the included C-clip system for secure installation
The Hop-Up Chamber M4G is equipped with an interchangeable Inlet Adaptor that centers the chamber precisely within the AEG gearbox nozzle outlet, ensuring there is no wobbling. Additionally, the removable CNC Brass Side Wings fit seamlessly into the outer barrel slots, while the advanced CNC Delrin Locking C-Clip secures the inner barrel tightly in place, preventing any twisting or loosening. The M4G model includes a BB Latching System to retain BBs after the magazine is removed, with a manual release function for easy clearing of BBs from the chamber.
Features:
- Maxx AEG/HPA to GBB barrel conversion for unique accuracy and performance
- Allows GBB bucking and barrel use on AEG/HPA platforms, delivering a larger contact surface for enhanced BB stability
- Rotary Dial Knob enables precise tuning for R-Hop, Flat-Hop, and Standard-Hop setups
- Includes four compatible hop nubs (Soft Round, 4mm Soft Flat, and 4mm Hard Concave) to accommodate various bucking types
- Interchangeable Inlet Adaptor centers unit in the AEG Gearbox with a wobble-free fit
- Advanced CNC Delrin Locking C-Clip keeps the inner barrel securely in place
- BB Latching System prevents BB drops when removing the magazine, with manual release for chamber clearing
- Compatible with Tokyo Marui and VFC-based M4/M16 AEG rifles and clones

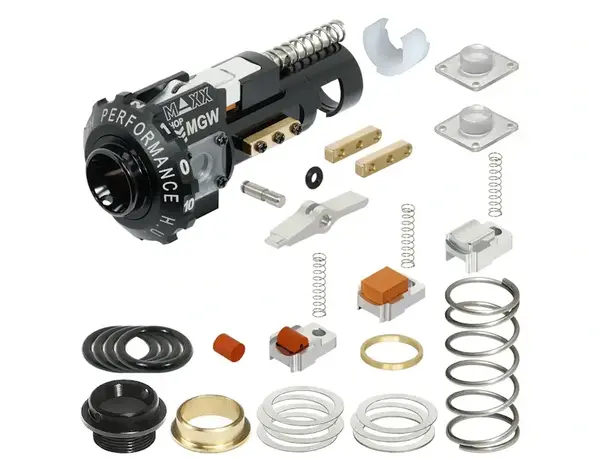

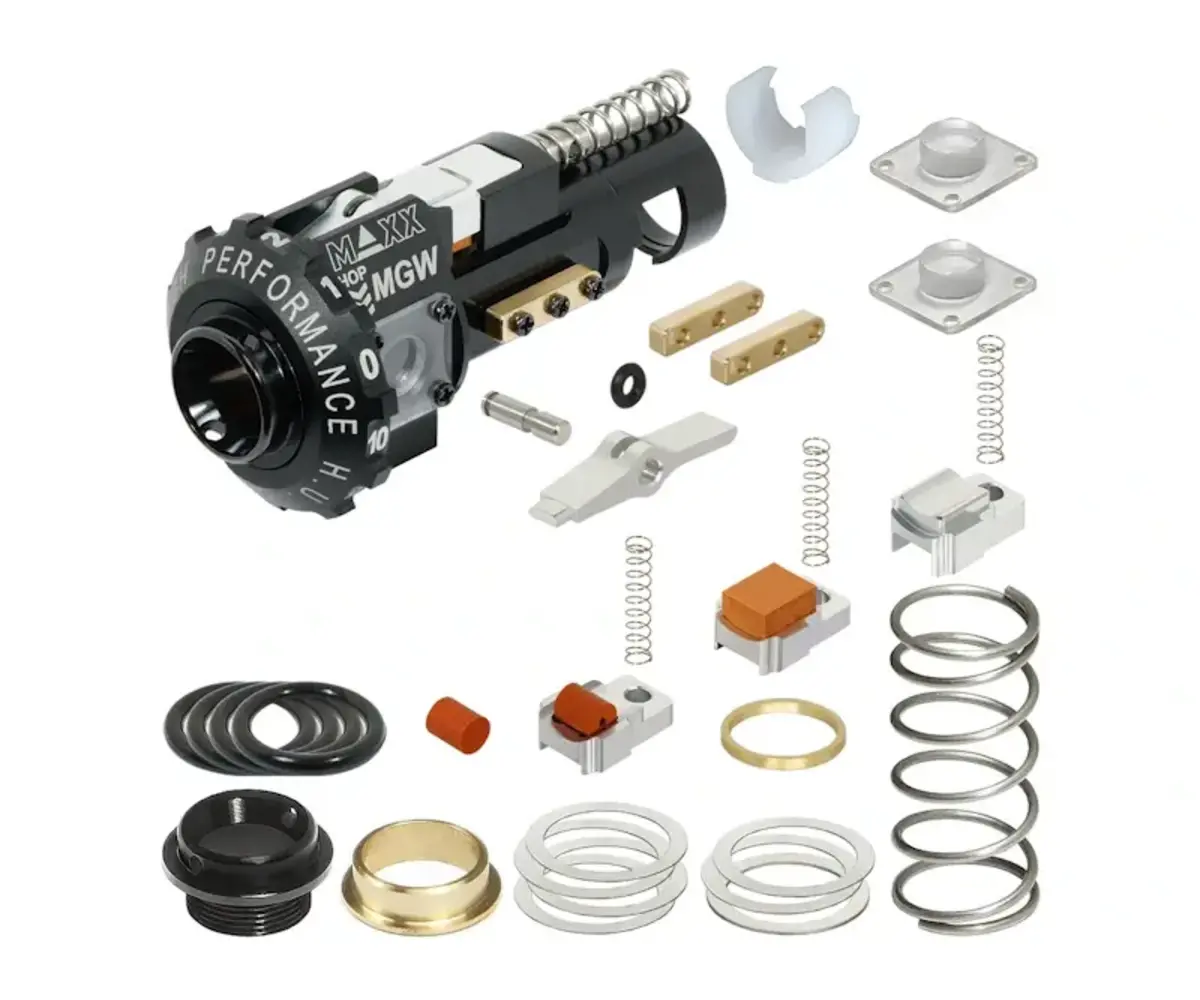

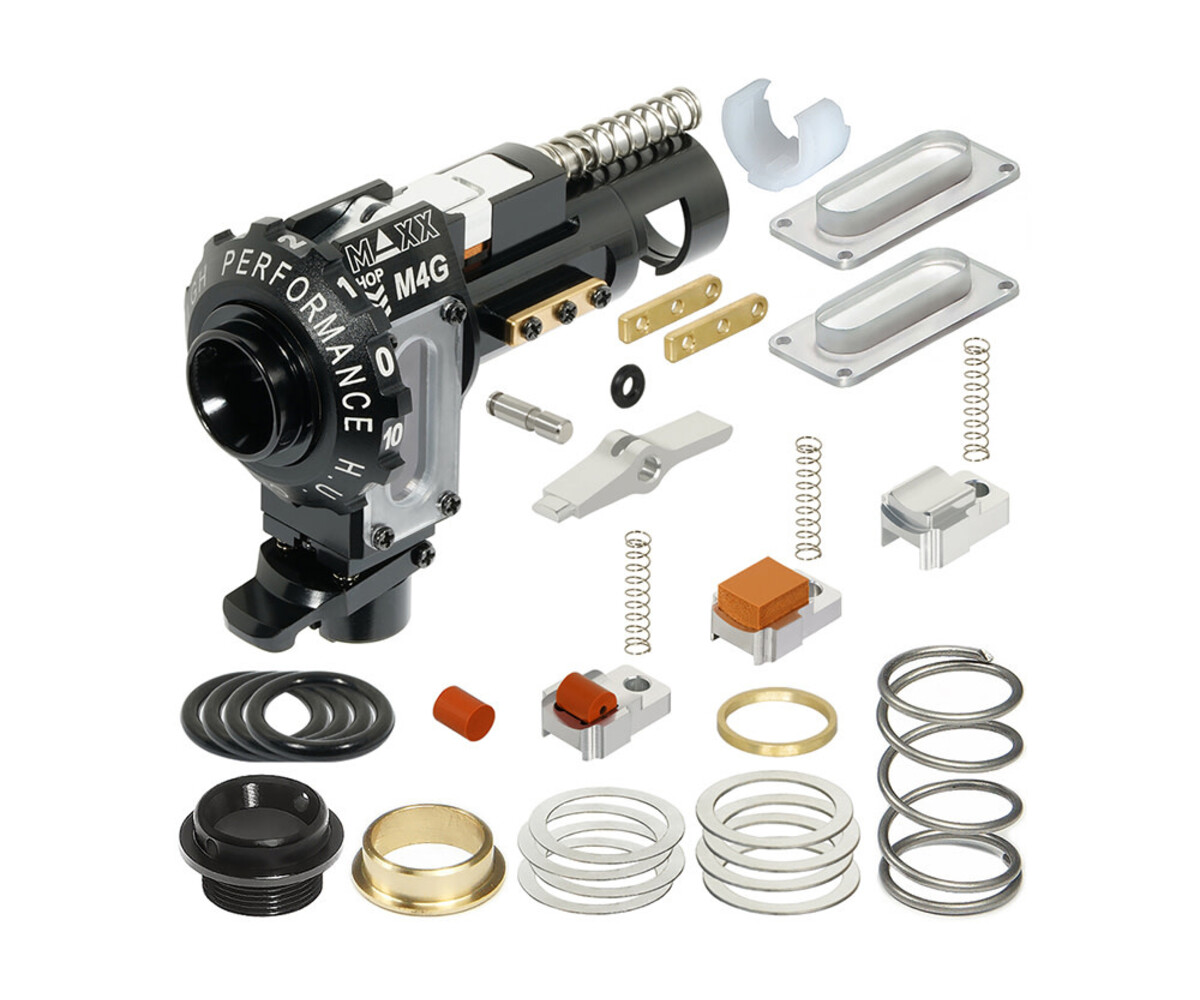

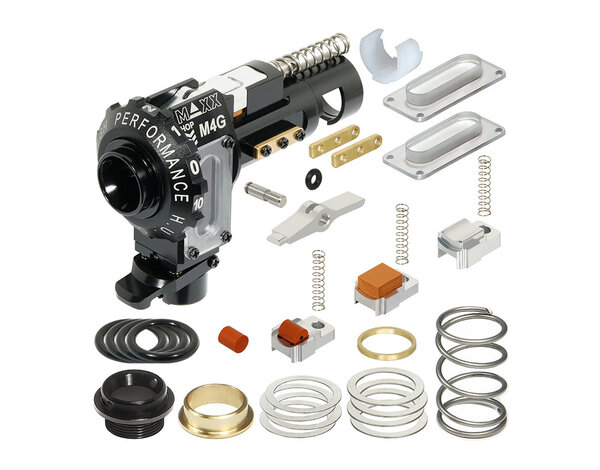

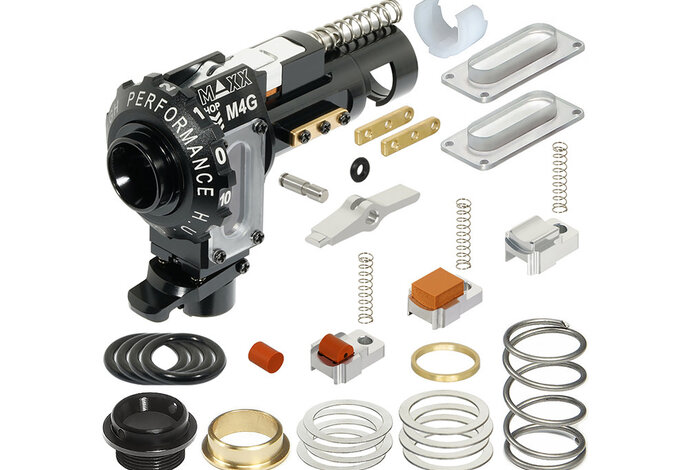

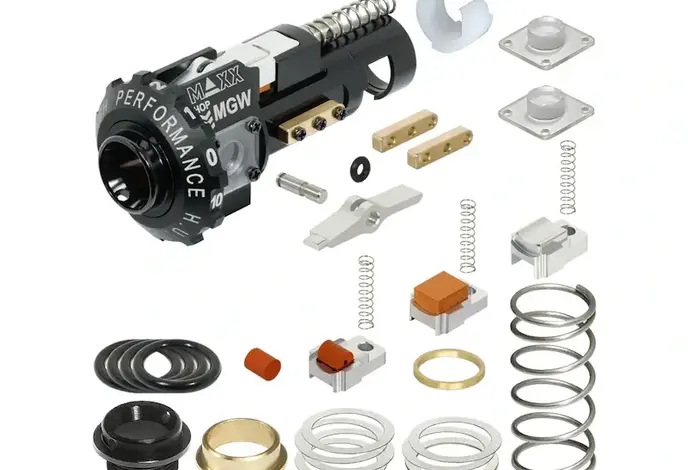

Includes:
- 1 x CNC Aluminum Hop-up Chamber M4G
- 2 x CNC Acrylic Side Cover
- 2 x CNC Brass 2.5mm Side Wing
- 1 x CNC Steel Pivot Pin
- 1 x CNC Aluminum Hopup Lever
- 1 x CNC Aluminum Soft Round Nub
- 1 x CNC Aluminum Soft Flat Nub
- 1 x CNC Aluminum Hard Concave Nub
- 3 x Steel Nub Spring
- 1 x CNC Steel Spring Guide
- 1 x Steel Upper Compression Spring
- 1 x Steel Center Compression Spring
- 1 x CNC Delrin Locking C-Clip
- 1 x CNC Brass Barrel Spacer
- 1 x Brass Barrel Spacer Holder Oring
- 1 x CNC Aluminum Rotary Dial Knob
- 1 x CNC Aluminum Inlet Adaptor
- 1 x Shim set
- 1 x Oring set
