Solink 40 Piece AEG Gearbox Shim Set

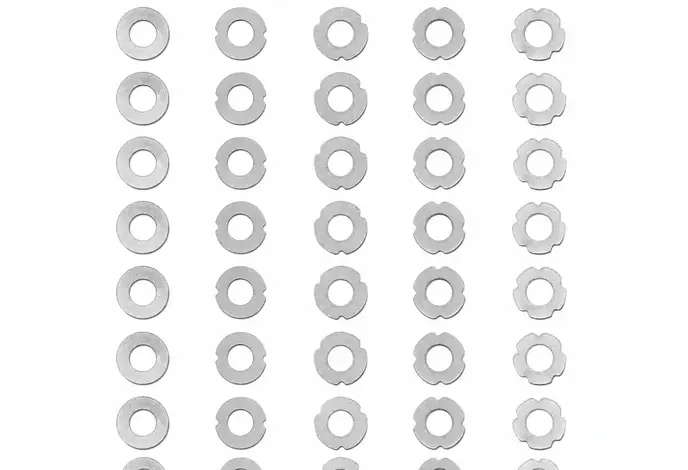

The Solink Shim Set is an AEG gearbox shim set designed for adjusting gear spacing during airsoft gearbox tuning, repair, or rebuild work. Proper shimming helps improve gear alignment, reduce unnecessary friction, and support smoother gearbox operation when installed correctly. This 40 piece set includes five shim thicknesses from 0.1mm to 0.5mm, with distinctive hole patterns to make each size easier to identify during installation.

Five Thickness Options: This set includes 0.1mm, 0.2mm, 0.3mm, 0.4mm, and 0.5mm shims, giving airsoft technicians a broad range of spacing options for gearbox tuning. The extra intermediate thicknesses are useful when making small adjustments to bevel gear, spur gear, and sector gear positioning.

Precision Laser-Cut Construction: Solink shims are made using high-precision laser cutting for clean edges, flat surfaces, and consistent dimensions. The zero-burr design helps the shims lay flat against the gear, supporting more consistent spacing during gearbox assembly.

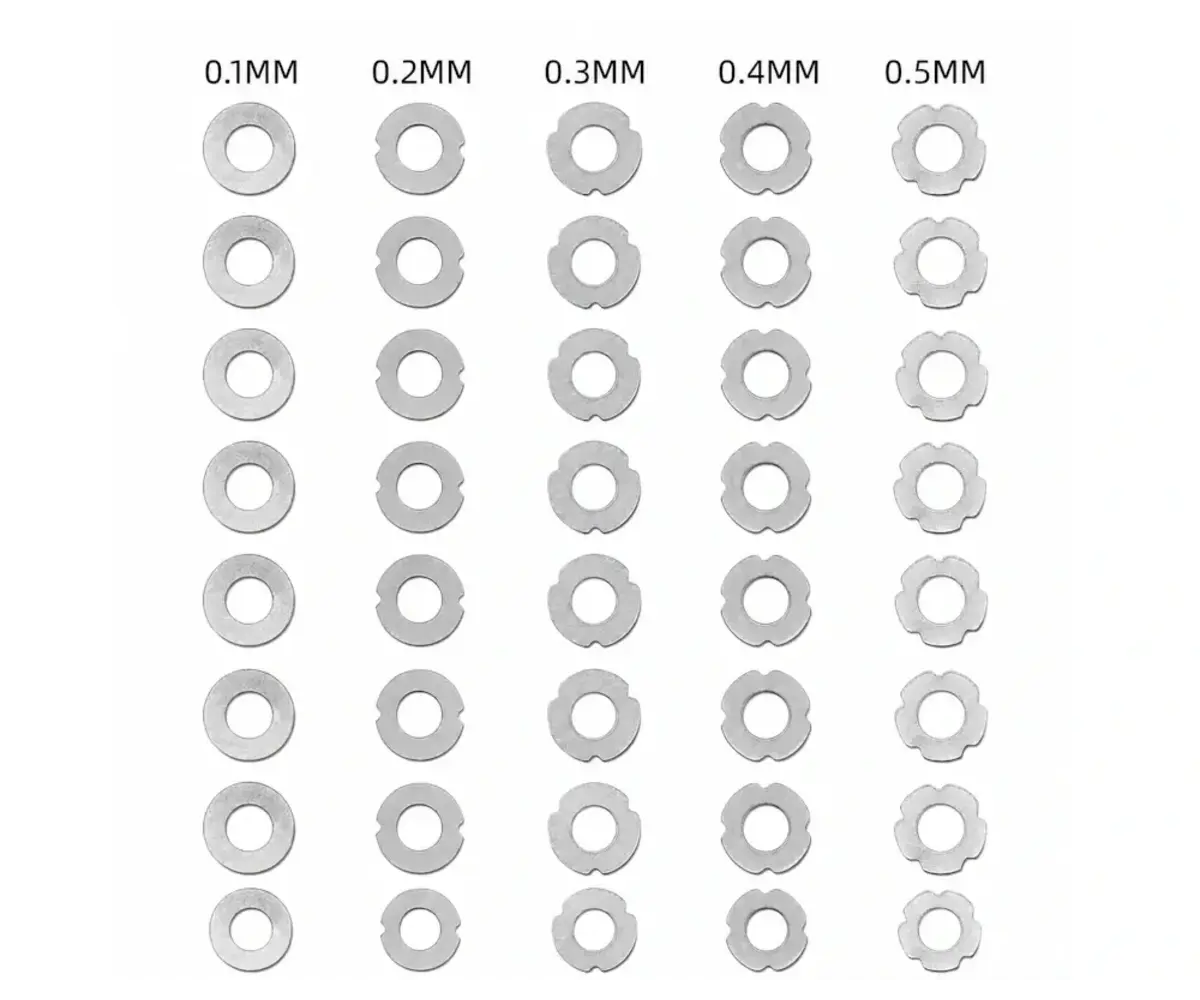

Easy Size Identification: Each shim thickness features a distinctive hole cut pattern, making it easier to identify shim sizes at a glance. This helps reduce the need to measure each shim before installation and can make gearbox work faster and more organized.

AEG Gearbox Tuning: These airsoft gearbox shims are used to adjust side-to-side gear movement inside the gearbox shell. Correct shimming can support smoother gear rotation and reduce unnecessary friction when combined with proper motor height adjustment and careful gearbox assembly.

Features

• AEG gearbox shim set for gearbox tuning, repair, and rebuild work
• Includes 40 shims total
• Includes 0.1mm, 0.2mm, 0.3mm, 0.4mm, and 0.5mm shim thicknesses
• Precision laser-cut construction for clean edges and consistent dimensions
• Zero-burr design helps shims lay flat against the gear
• Distinctive hole cut patterns make each shim size easier to identify
• 3.04mm inner diameter and 6.00mm outer diameter
• Useful for fine-tuning gear spacing inside an airsoft AEG gearbox

Specifications

Manufacturer: Solink
Material: metal
Shim Thicknesses: 0.1mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm
Shim Inner Diameter: 3.04mm
Shim Outer Diameter: 6.00mm
Quantity Included: 40 total; 0.1mm x 8, 0.2mm x 8, 0.3mm x 8, 0.4mm x 8, 0.5mm x 8
Package Includes: Solink Accessories-Shim Sets-01 40 piece shim set
