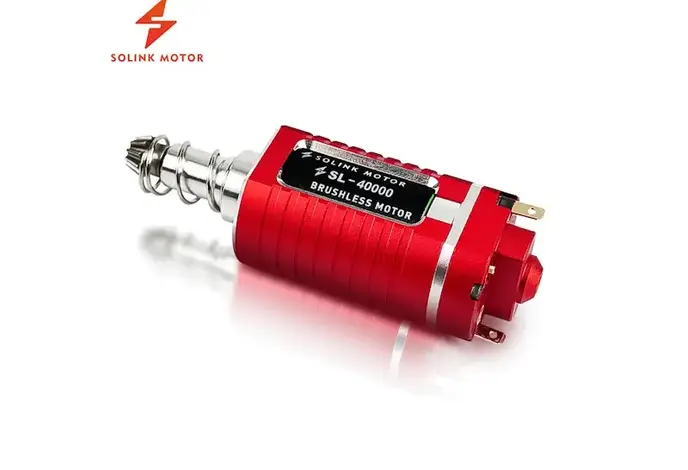

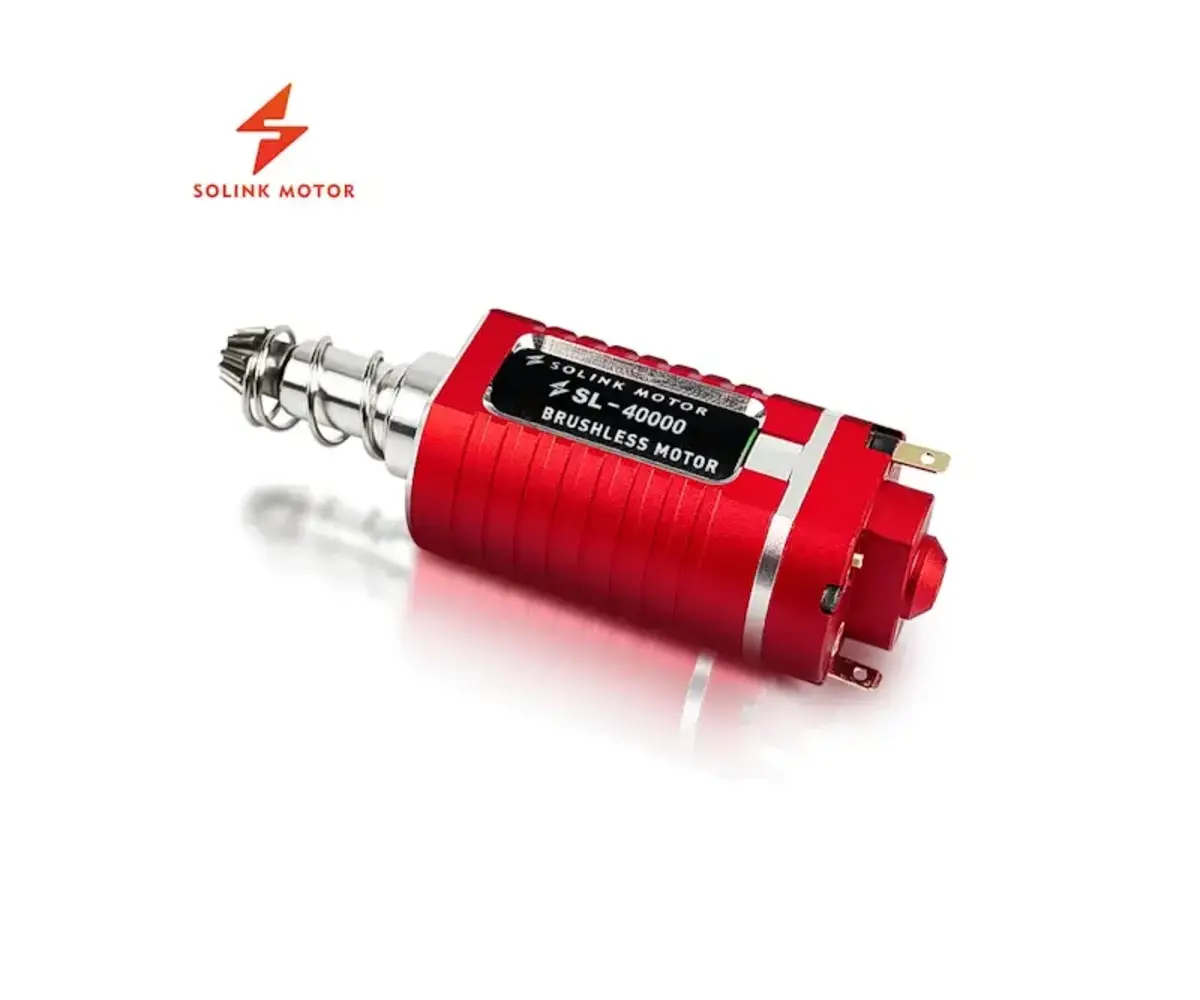

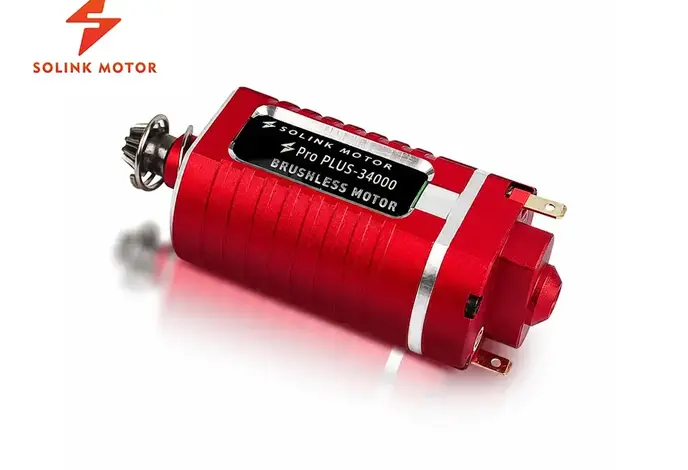

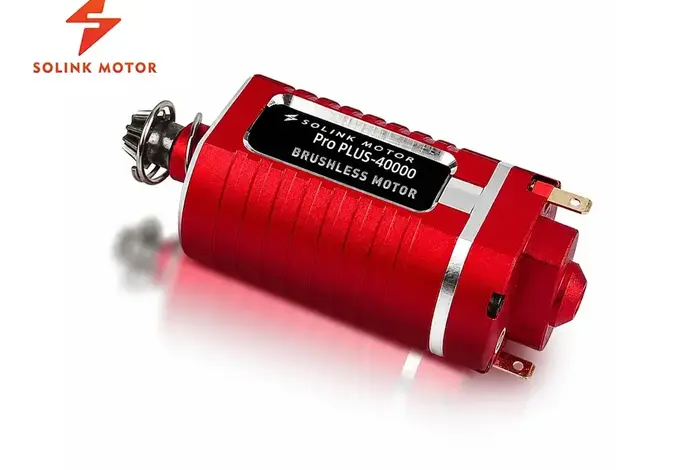

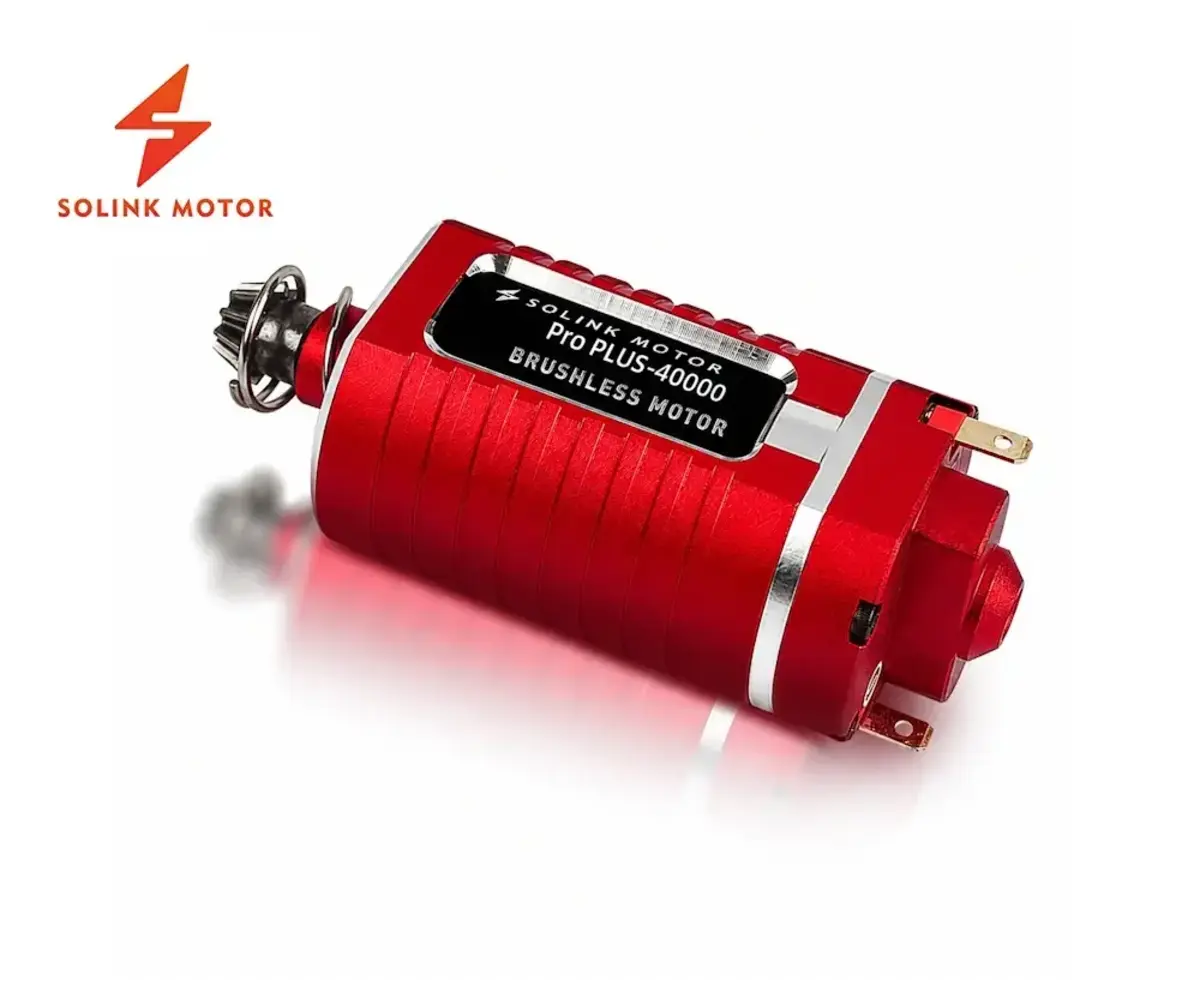

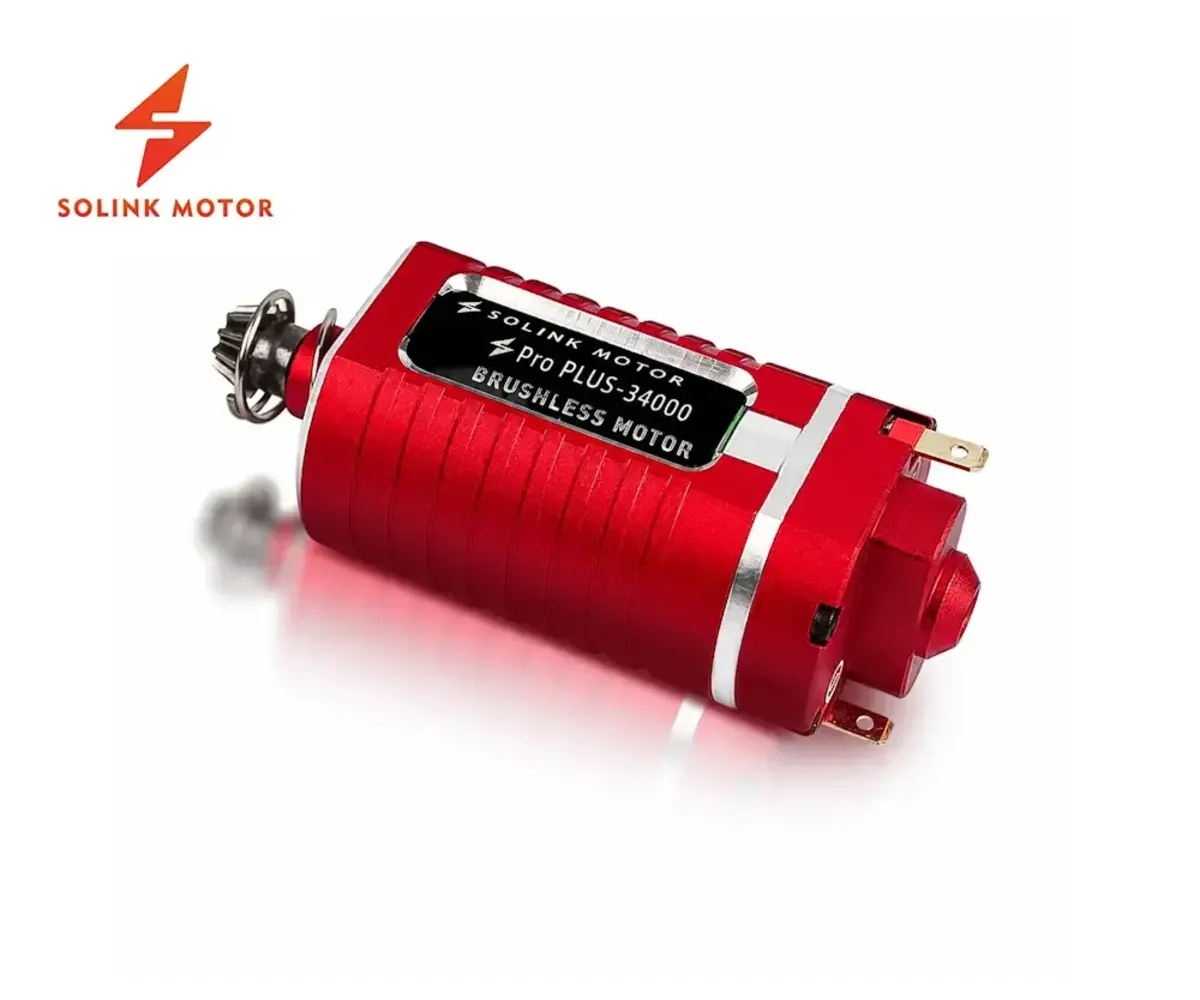

Solink Pro Plus Brushless AEG Motor

The Solink Pro Plus Brushless AEG Motor is an upgraded airsoft brushless motor designed for high-performance AEG builds requiring efficient power delivery and advanced drivetrain control. Available in 34K and 40K RPM versions with long or short shaft configurations, this motor builds upon the previous Solink Professional series with an updated red housing and a unidirectional bearing shaft system. Designed for serious builders and technicians, this high performance AEG motor offers brushless efficiency, selectable speed modes, and a drivetrain design that eliminates the need for a traditional anti-reversal latch.

Brushless Motor Technology: The Pro Plus motor uses a brushless design that replaces traditional carbon brushes with electronically controlled motor operation. This reduces mechanical wear and improves electrical efficiency, making it a durable choice for upgraded AEG builds that demand reliable cycling and consistent performance over extended use.

Unidirectional Bearing Shaft Design: One of the major upgrades in the Pro Plus model is the integrated unidirectional bearing shaft. This design prevents the motor from rotating backwards, eliminating the need for a traditional anti-reversal latch inside the gearbox. Removing the anti-reversal latch simplifies drivetrain dynamics and can reduce mechanical stress in compatible builds.

Selectable High / Low RPM Modes: The motor includes a selectable speed function that allows users to switch between a full-speed mode and a reduced-speed mode. The low mode operates at approximately 20% lower RPM than the high-speed setting, allowing users to tune gearbox cycling characteristics for different play styles or performance requirements.

High Torque Capability: The Solink Pro Plus is rated to support builds up to M190 springs, making it suitable for demanding AEG setups that require strong torque output while maintaining stable cycling under heavy load.

Protective Electronics: Integrated emergency stop and overheat protection help safeguard the motor and surrounding drivetrain components during extended use. The motor is also compatible with ETU systems that utilize active braking.

Durable Aluminum Motor Housing: The motor body uses an aluminum shell for structural strength and heat dissipation. Combined with a D-type pinion gear and wide voltage compatibility, the motor is designed for reliable operation across a variety of upgraded AEG platforms.

Features

• brushless AEG motor design
• available in 34K and 40K RPM versions
• long or short shaft motor options
• unidirectional bearing shaft eliminates anti-reversal latch requirement
• high / low RPM selectable speed mode
• aluminum motor housing
• D-type pinion gear
• supports up to M190 spring builds
• ETU active braking compatible
• overheat protection and emergency stop protection

Specifications

Motor Type: brushless AEG motor
Available Speeds: 34K RPM / 40K RPM (11.1V no-load)
Shaft Types: long or short
Material: aluminum motor housing
Gear: D-type pinion
Voltage Range: 7.4V – 16.8V
Torque Capacity: supports up to M190 spring builds
Compatibility: most standard AEG gearboxes; unidirectional bearing design eliminates the need for an anti-reversal latch in compatible builds
